Indian ME Frame Manual

Jump to navigation Jump to search

This frame manual is incomplete - it is missing all the part number pages.

PDF Version

Download it from Media:Indian_ME_Frame_Manual.pdf

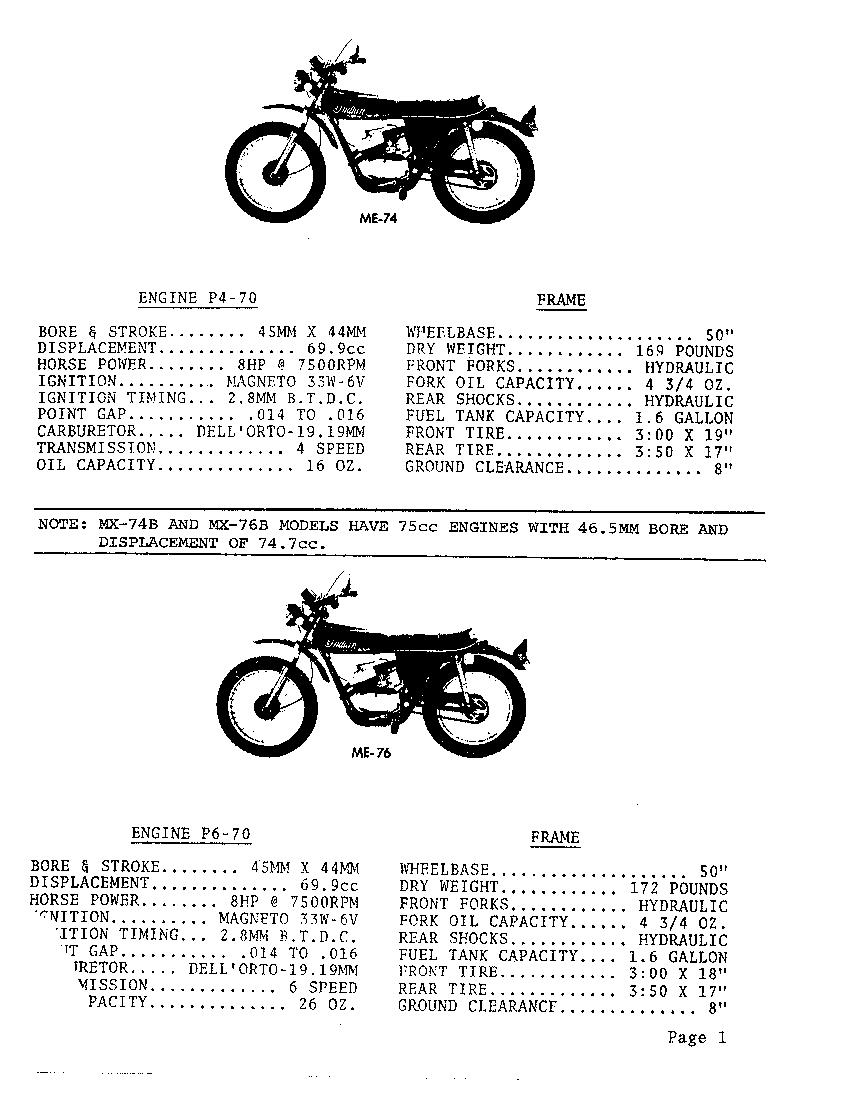

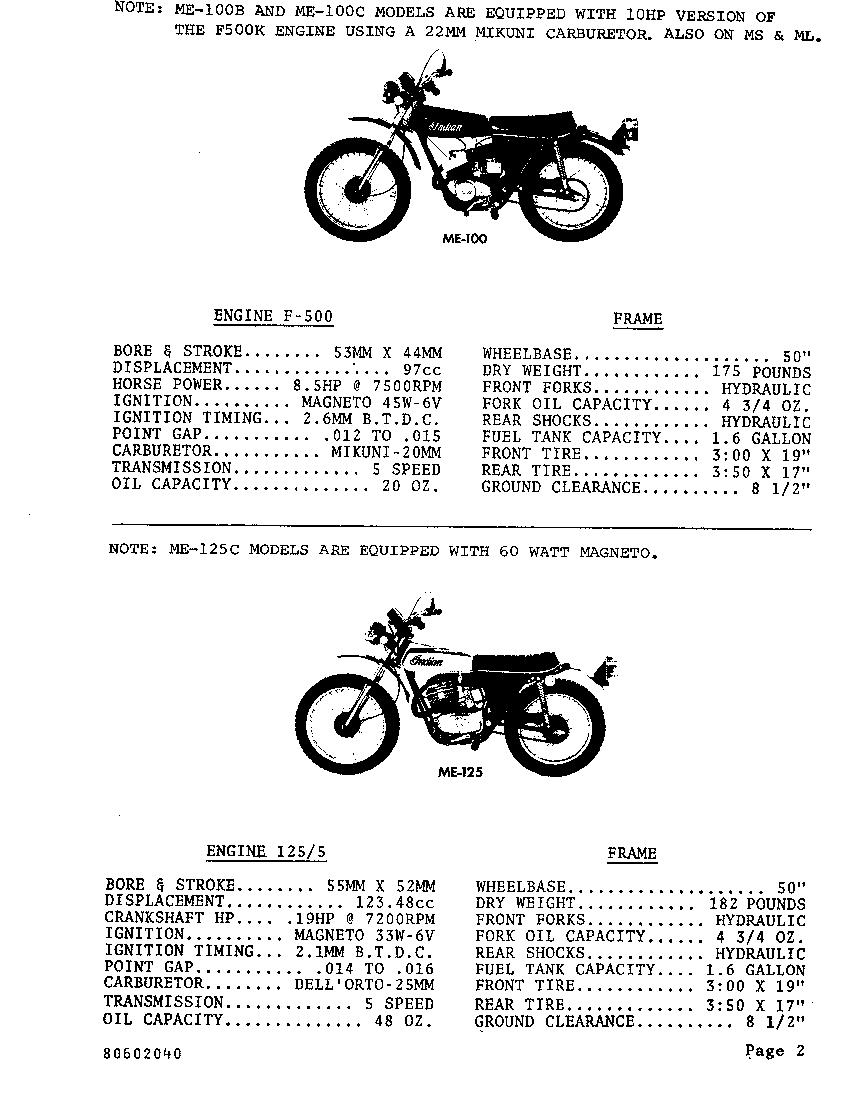

Frame Identification

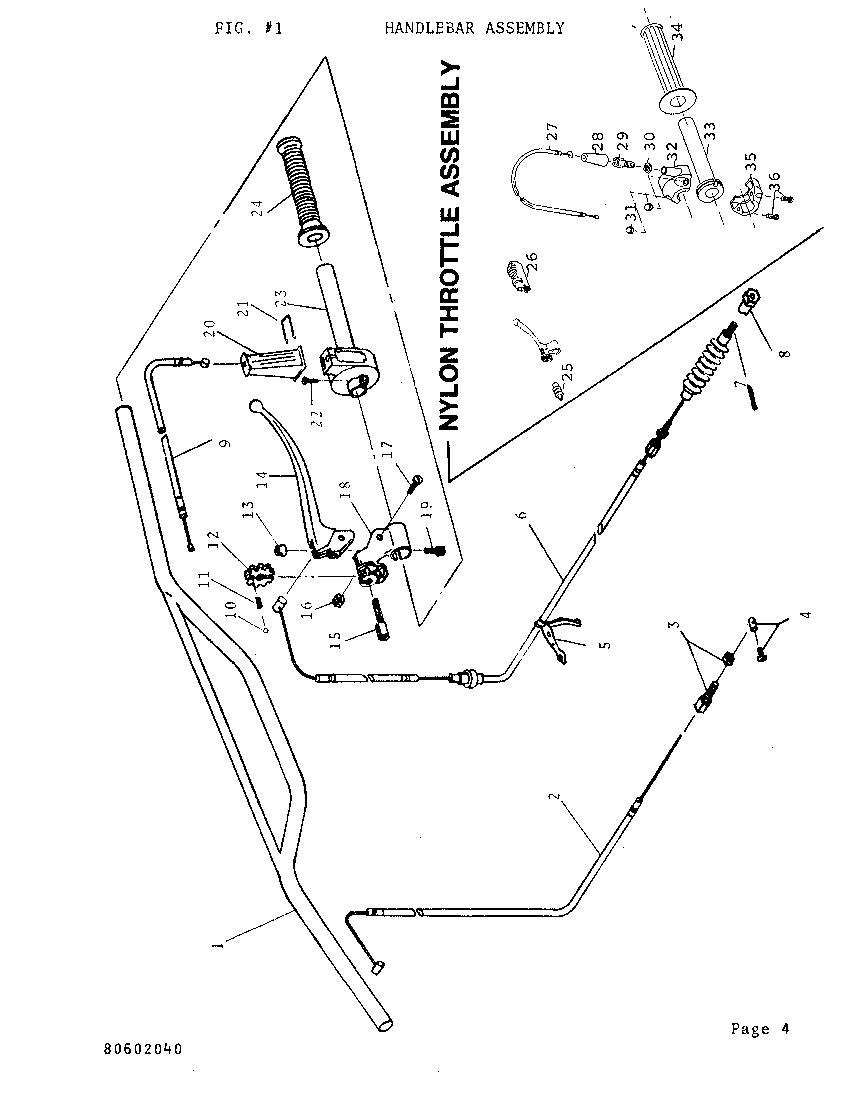

Handlebar Assembly

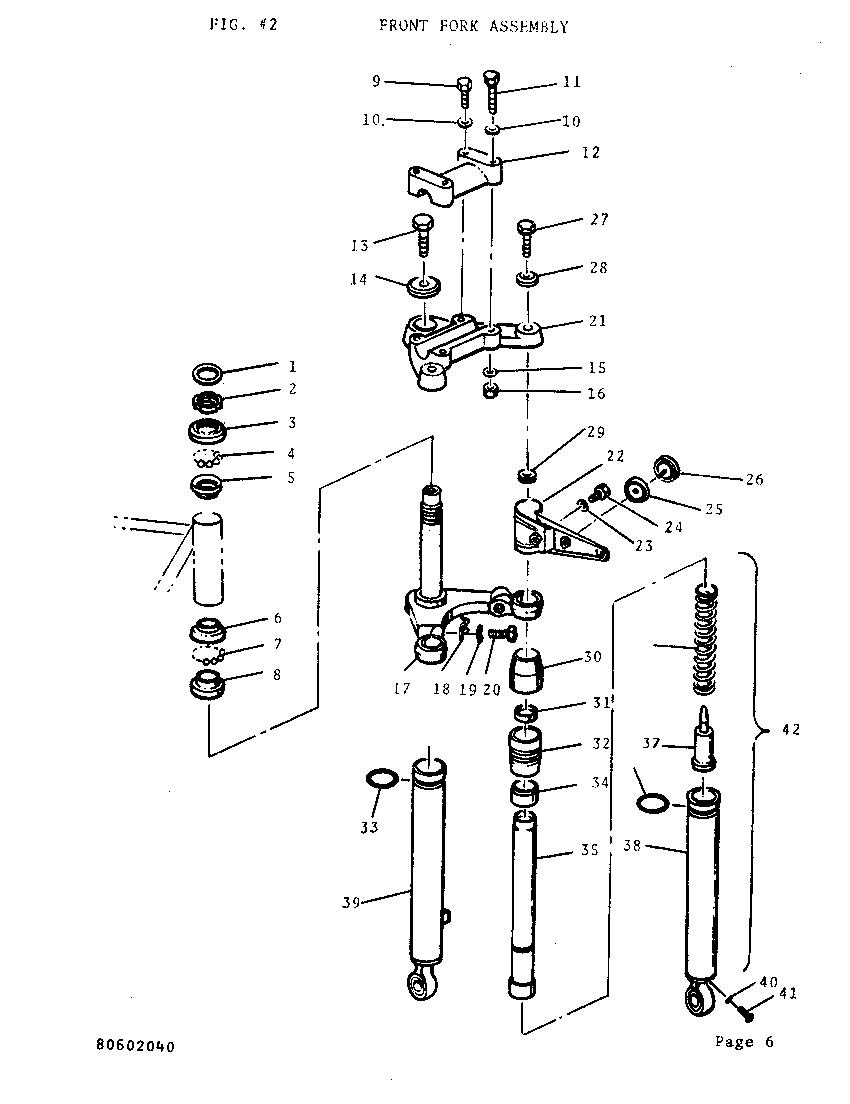

Front Fork Assembly

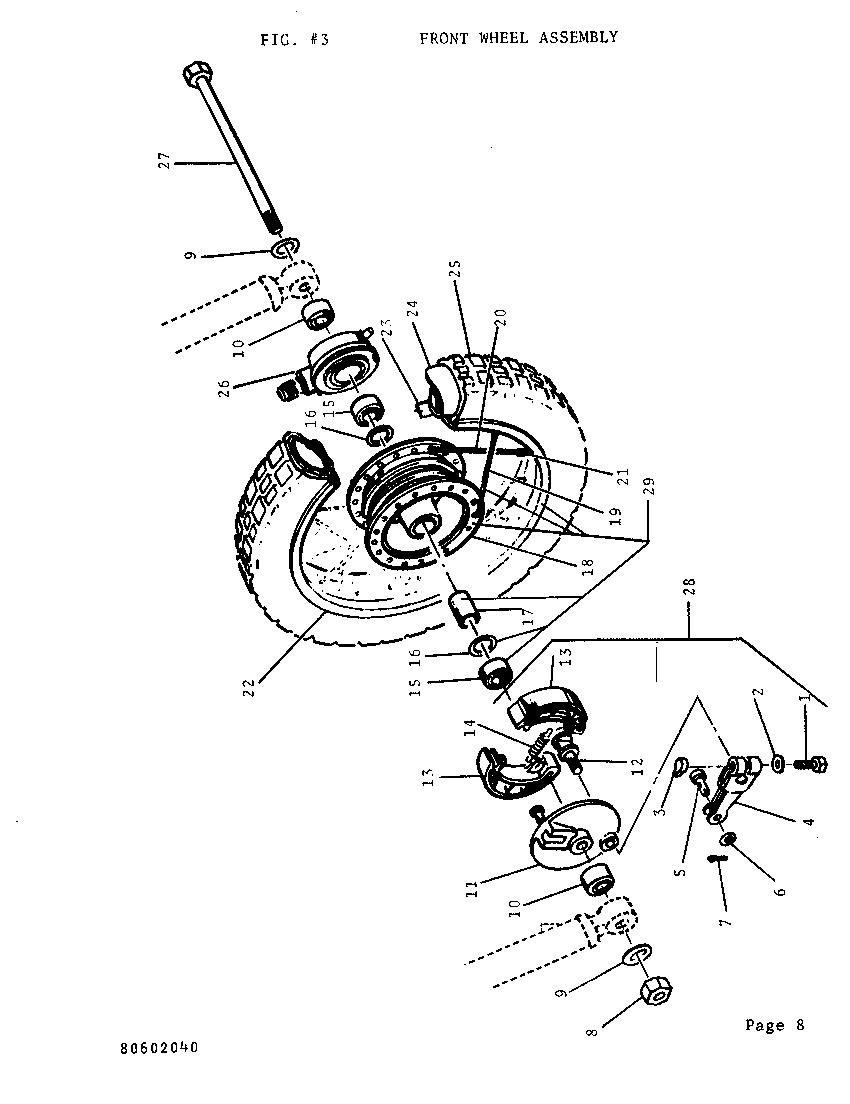

Front Wheel Assembly

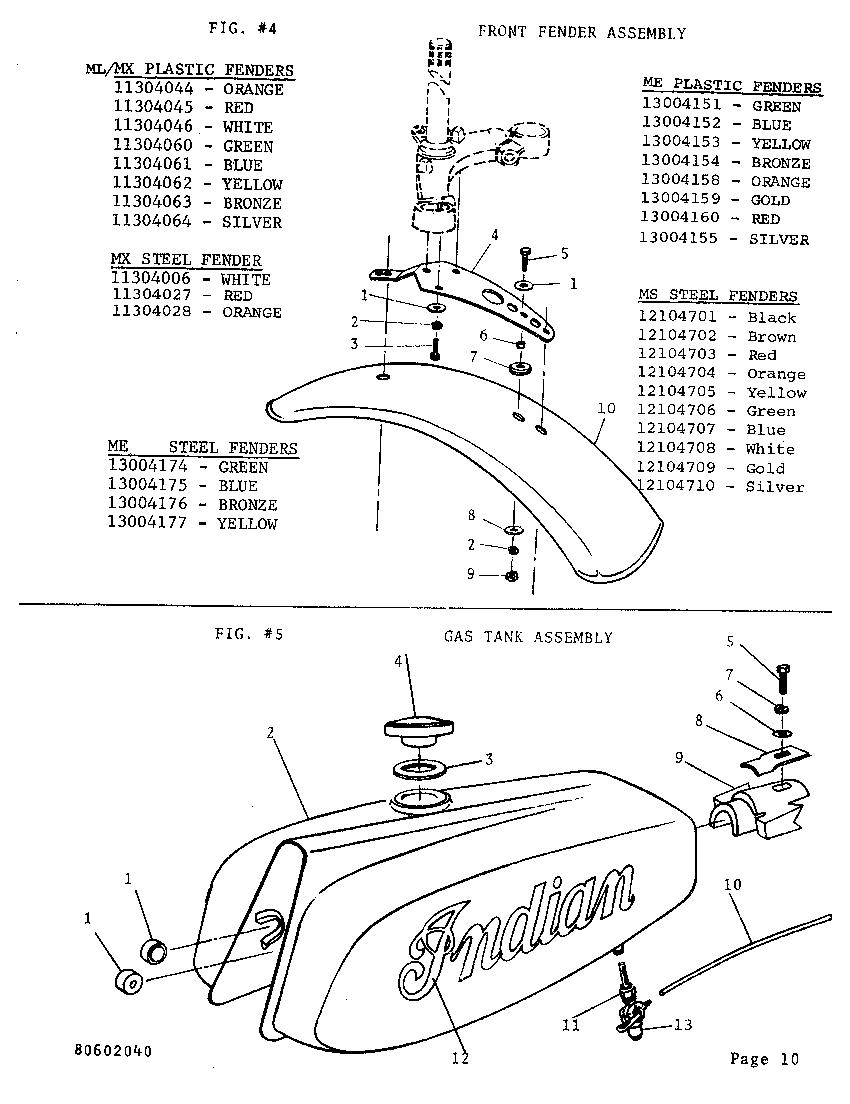

Front Fender Assembly

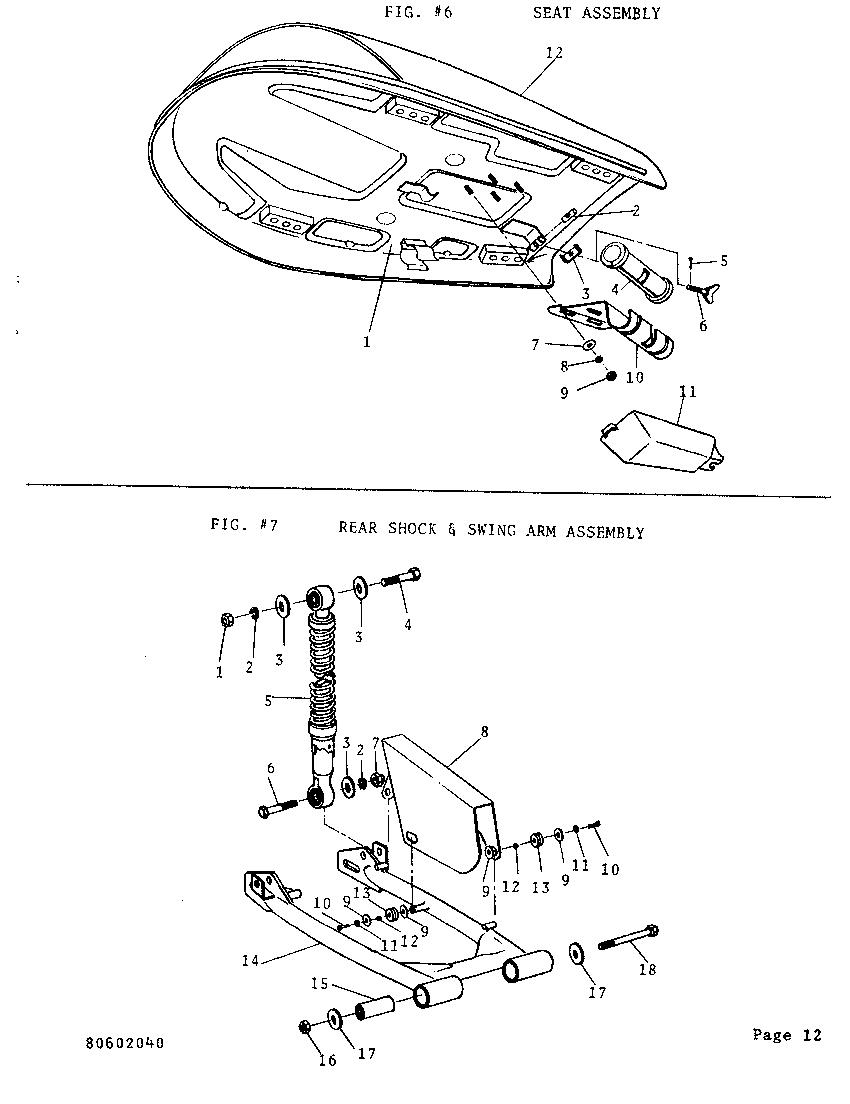

Seat Assembly

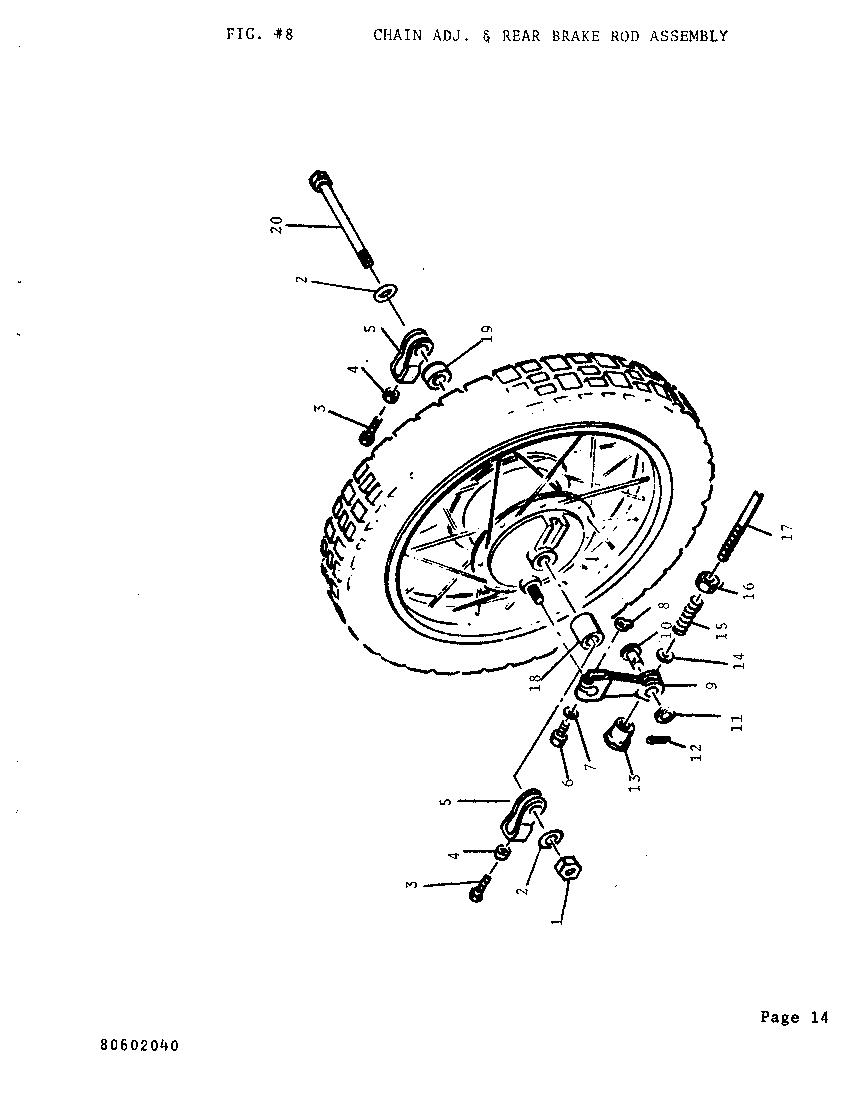

Chain Adjustment and Rear brake Assembly

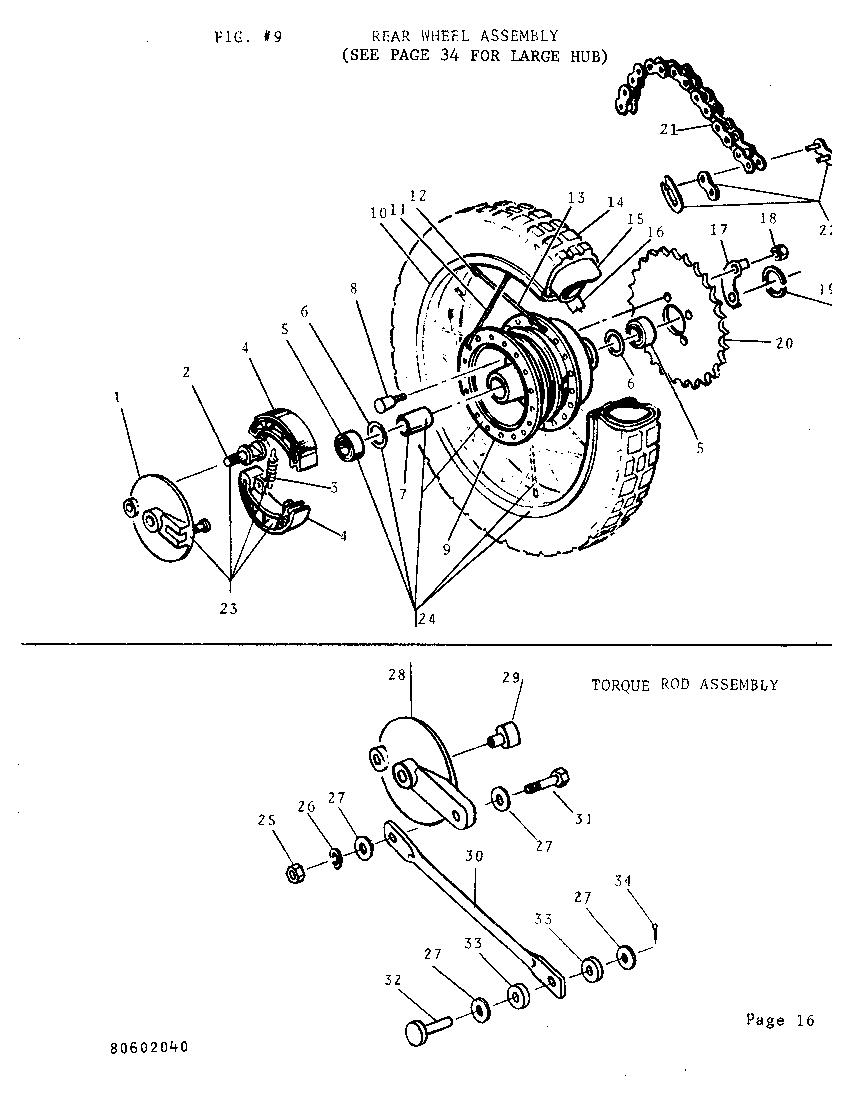

Rear Wheel (Small Hub) and Torque Rod Assembly

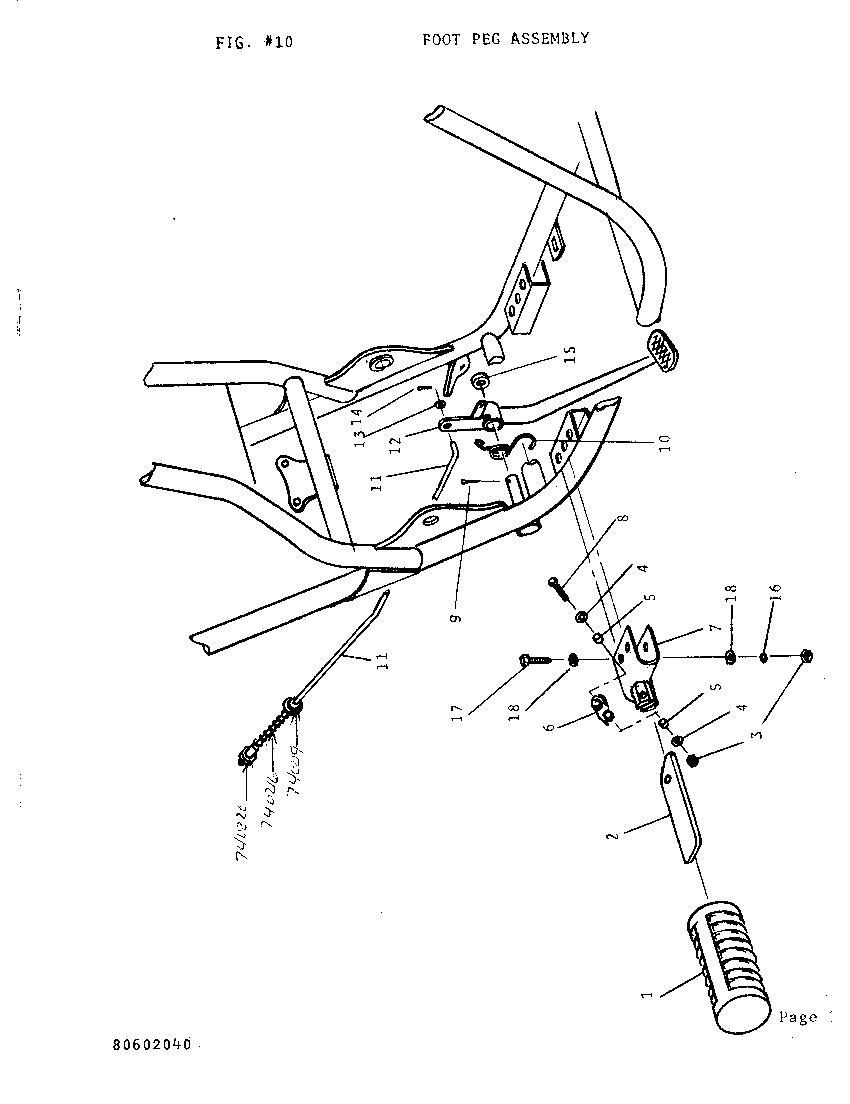

Foot Peg Assembly

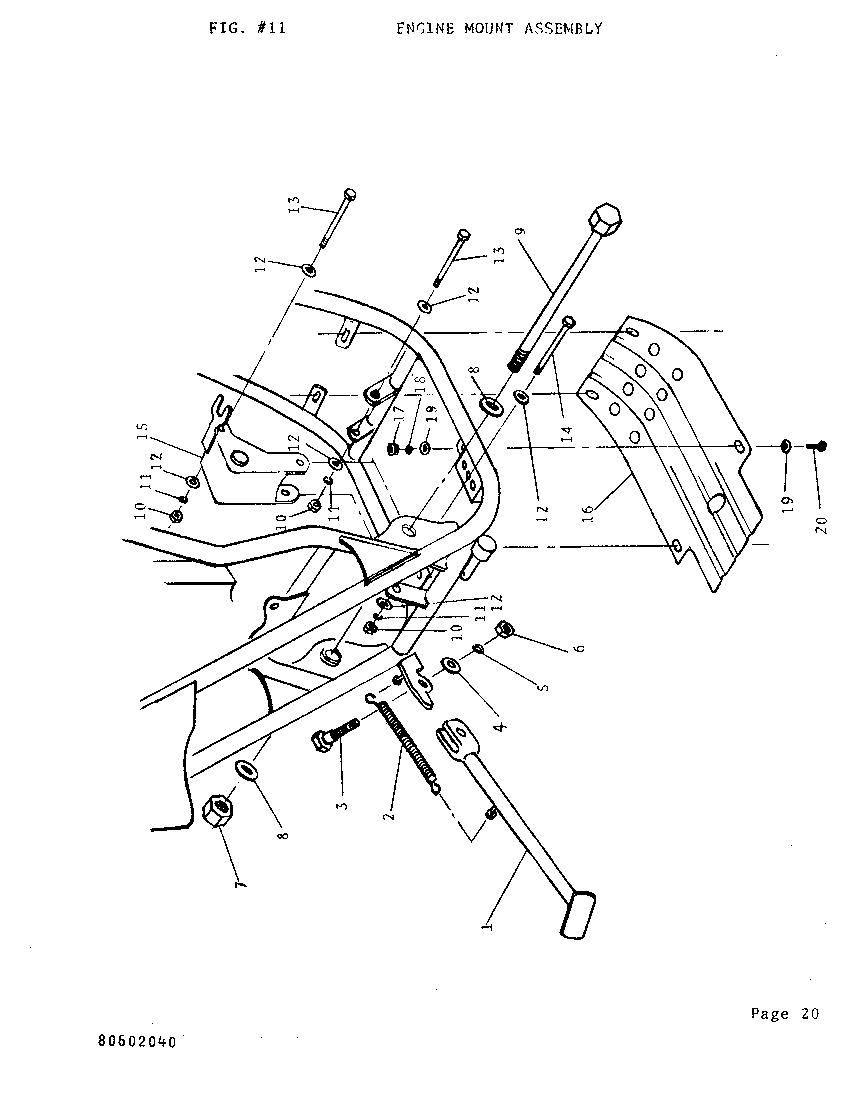

Engine Mount Assembly

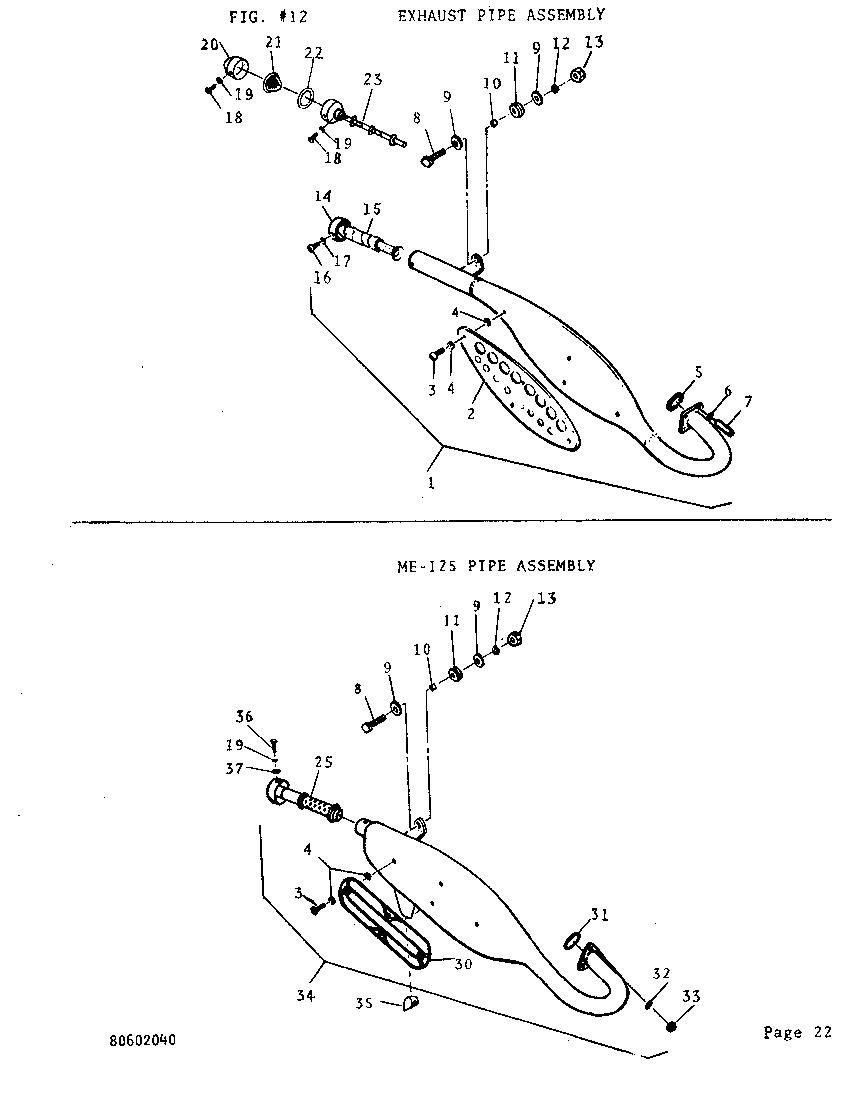

Exhaust Pipe Assemblies

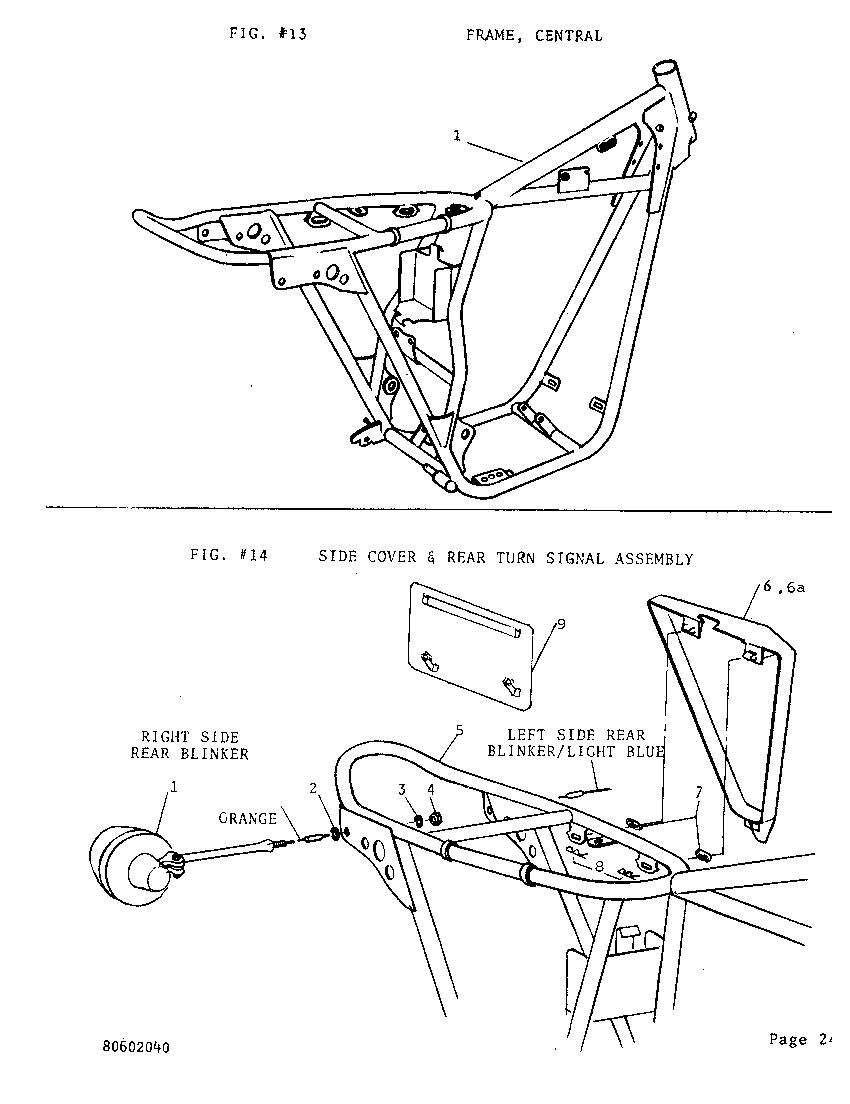

Frame Assembly

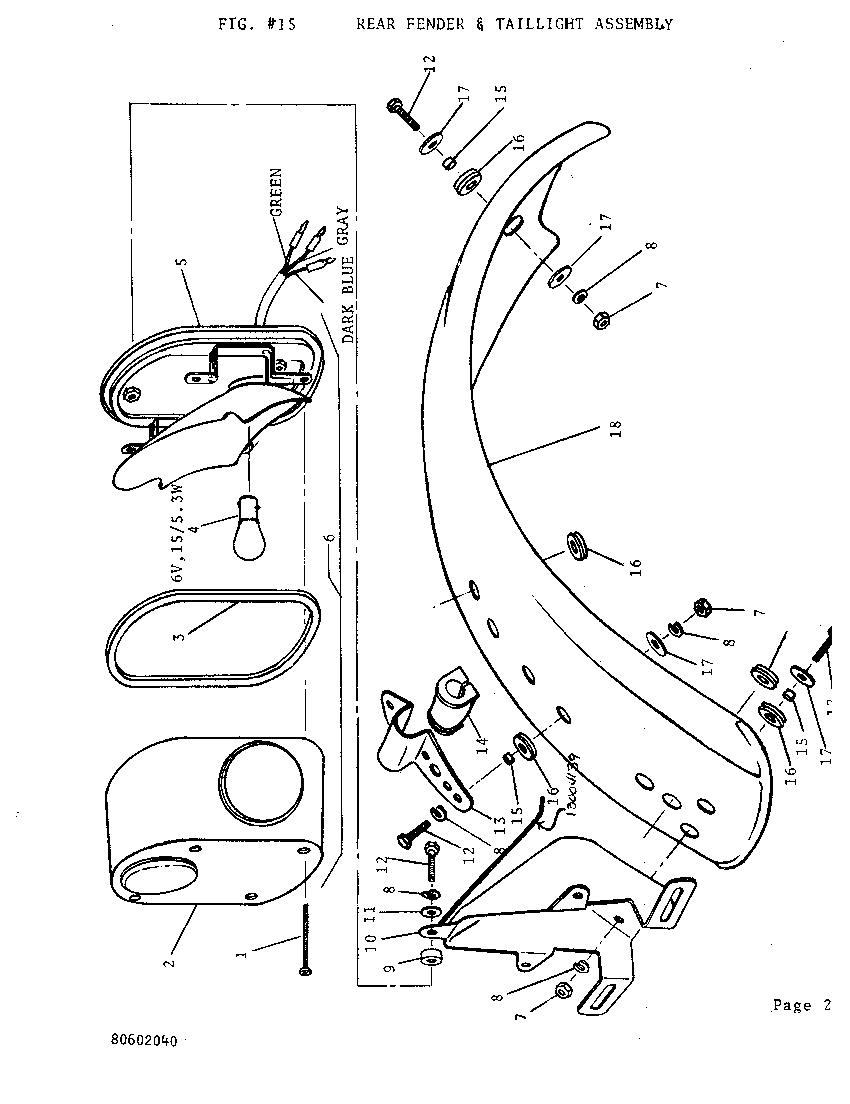

Rear Fender and Taillight Assembly

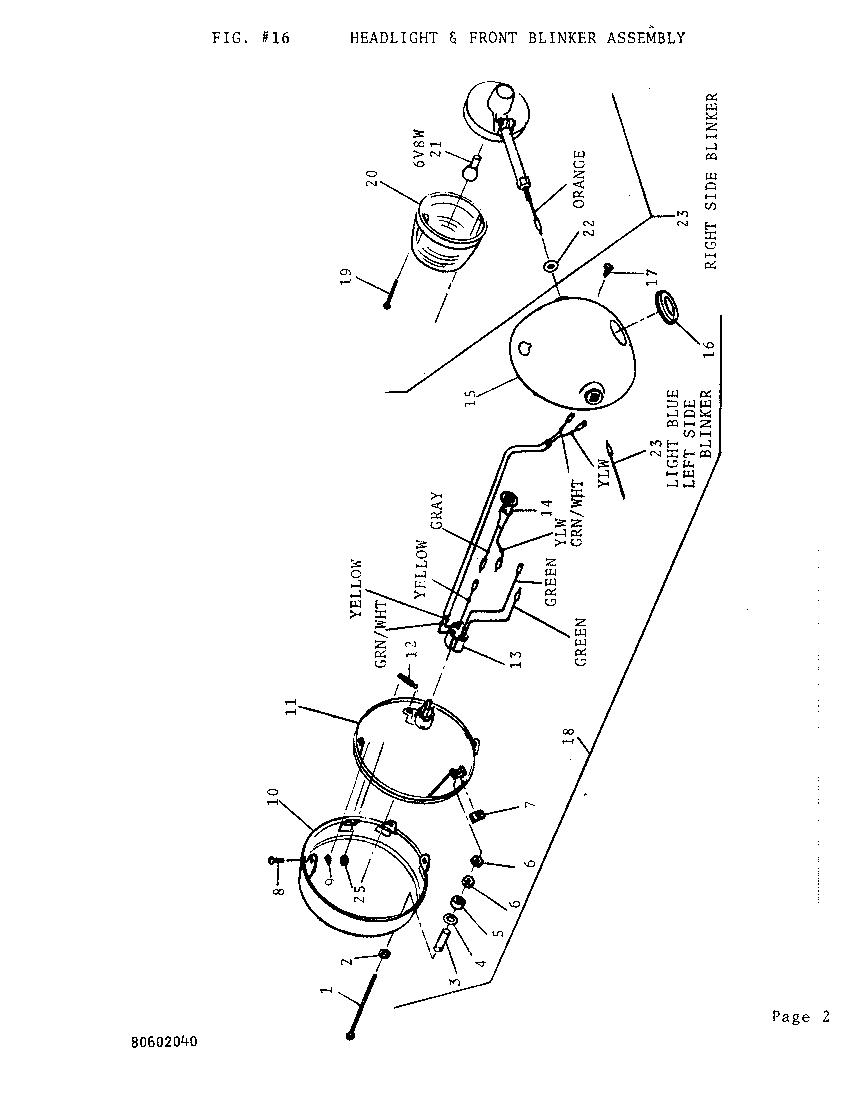

Headlight and Front Blinker Assembly

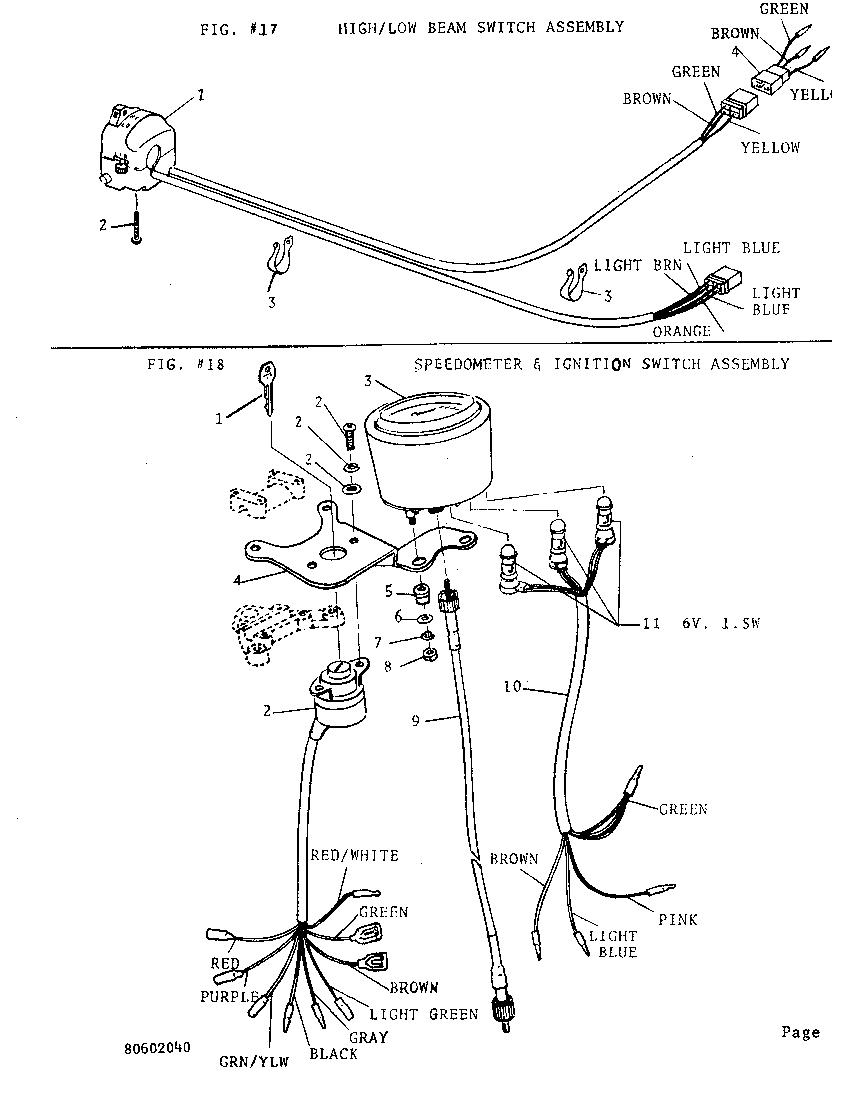

Speedometer and Switch Assemblies

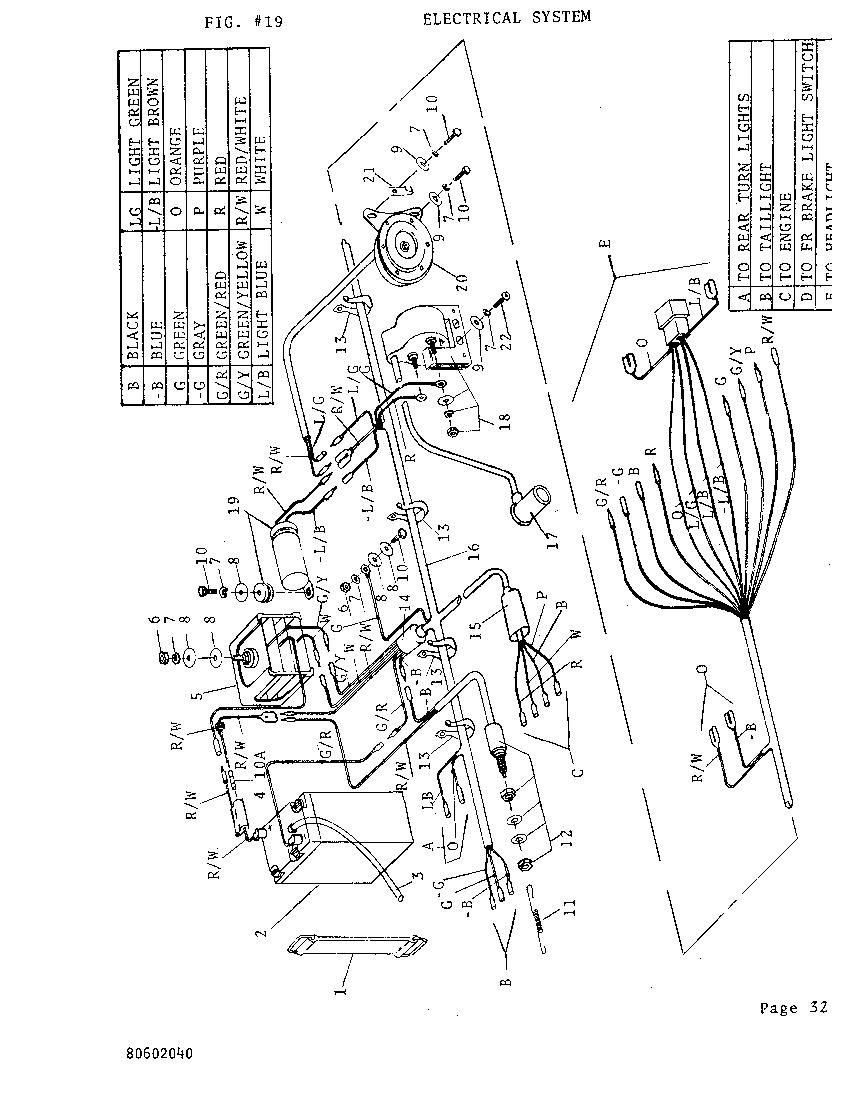

Electrical Harness Layout

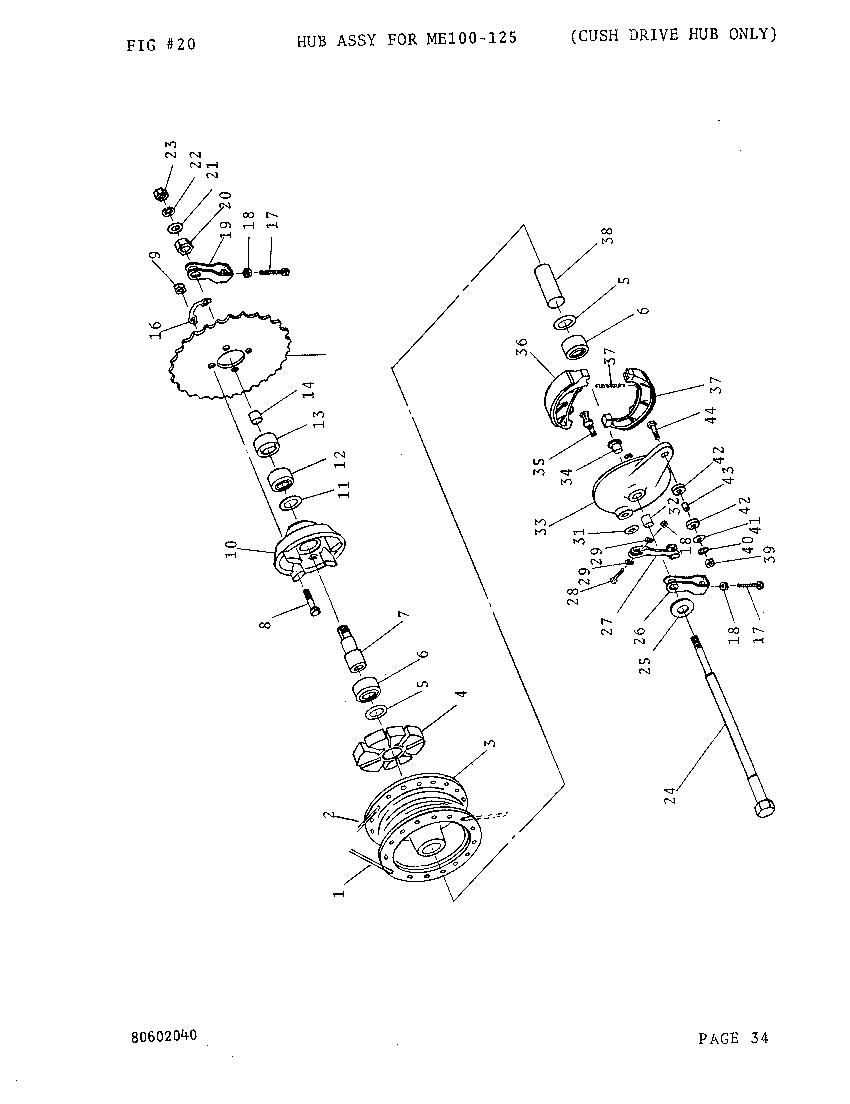

Cush Drive Hub Assembly

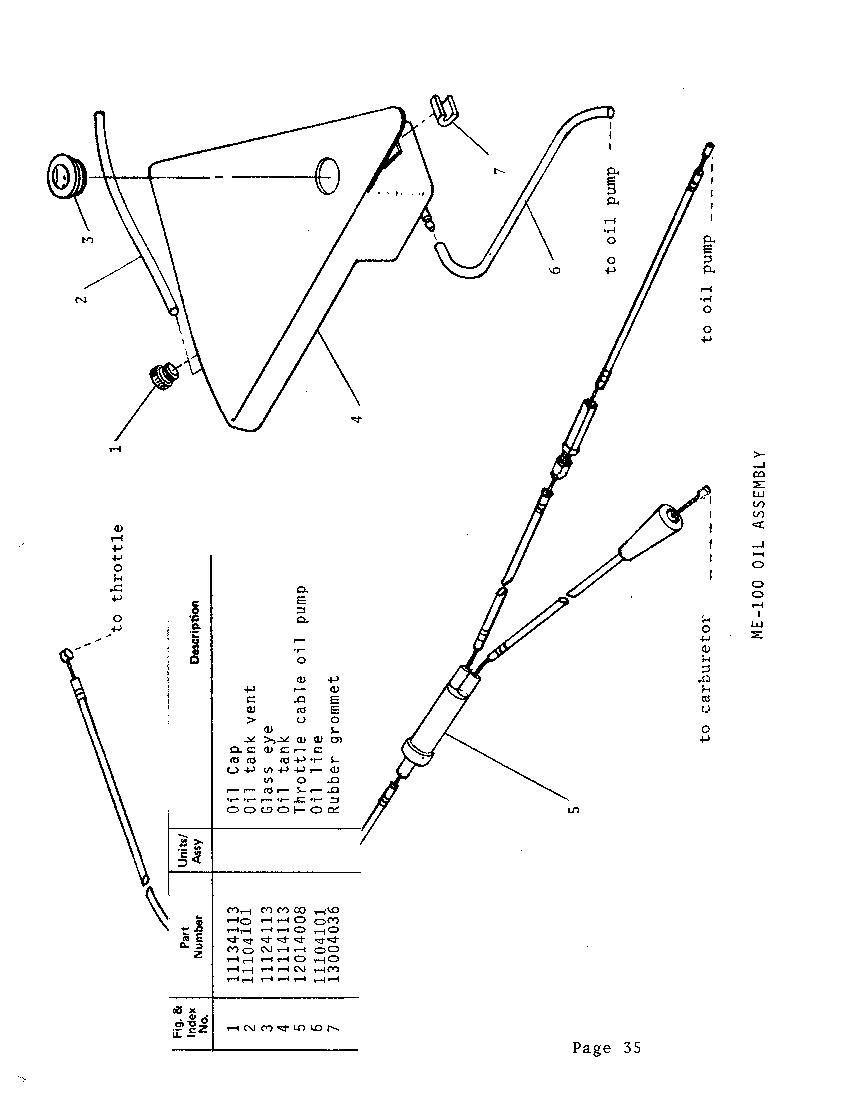

ME100 "Dual Throttle Cable" Assembly
